This document shows two programming examples using the built in assembler of BBCBASIC for the Einstein to input and output bytes via its USER PORT. Programming requires configuring  the Einstein’s internal  Z80 PIO IC.


Two programming listing examples are given for BBCBASIC FOR WINDOWS to run in a MS/WINDOWS PC to transmit and receive bytes which run in conjunction with the BBCBASIC programs given for the Einstein.




Contents

Programming on the PC

•BBCBASIC FOR WINDOWS -  using


Programming on the Einstein

• Z80 PIO and interrupt handshaking -described


Writing to the z80 pio control port

Set up for Mode 0 (output) and Mode 1 (input)


More About The Einstein’s Z80 PIO

•Einstein’s printer port -using.


Program Listings

•U_OUT_EN.BBC Einstein User Port Output

•U_IN_EN.BBC     Einstein User Port Import

•XP_IN.BBC          BBC4W’s PC printer port Imput

•XP_OUT.BBC      BBC4W’s PC printer port Output


Wiring & pinouts


EXCHANGING BYTE  DATA

VIA
THE EINSTEIN’s USER PORT AND THE PC’S

PRINTER PORT

By Chris Coxall

Programming on The PC using BBCBASIC FOR WINDOWS


The programming for BBCBASIC FOR WINDOWS has been kept to basic basic so to run in a window as would be expected to run in a full screen DOS version of basic or as would be expected to be how the Einstein or other vintage computers would display running programs. There has been no attempt to take advantage of BBCBASIC FOR WINDOWS ability to use windows features such dialogue boxes or drop down menus that can be used with BBCBASIC FOR WINDOWS.


An an exception to simple programming in the listings are system calls to third party WINIO support files to access computer ports directly when using XP and WIN2000. The WINIO files must be present in the same folder that the bbcbasic for windows files are saved to. The intention of simple programming is to show a basic guide which can be followed and understood by others who have a preference to use other programming for writing windows software. The two programs given are just small enough to run in the free Demo version of BBCBASIC FOR WINDOWS.  The required third party WINIO support files come with the BBC4W installation package. See BBC4W HELP index-"Input/output using WINIO ".

Download BBCBASIC FOR WINDOWS http://www.rtrussell.co.uk/.


It might be possible for the two BBC4W programs given to exchange data by bytes between two windows PC's via their ECCP printer ports. This has not been tried. Download XP_IN.BBC and XP_OUT.BBC in a zip archive from

The Tatung Einstein Computer Website xpinout.zip

Einstein Programming for the Z80 PIO and interrupt handshaking


•Basic principles for mode 0 output and mode 1 input.

Programming the Z80 PIO for mode 0 (eight bit output) or mode 1 (eight bit input) with hardware handshaking requires an interrupt routine. The interrupt is generated by a high or pulse high received on the STB pin of the Einstein's user port set by strobe from the PC's printer port. An output of a byte to the PIO's data port will set the RDY pin on the user port high to be received by Acknowledge on the PC's printer port for mode 0 output. For input mode 1 the RDY signal is active  when the input register is empty and is ready to accept data from the peripheral device.


The BBCBASIC programs for the Einstein's user port U_IN_EN.BBC and U_OUT_EN.BBC have been put into an Einstein Disk Image. Download from this web page. pio.zip  A 3.5 inch Einstein floppy can be made from the image in a PC floppy 3½”drive with CPCDiskXP software DOWNLOAD HERE http://www.cpcmania.com/.


Files in the disk image can be extracted from the image into PC folder using EDIP

SEE PAGE edip.html


WRITING TO THE Z80 PIO CONTROL PORT

•FOR MODE 0 and MODE 1

•WITH INTERRUPTS ENABLED


%VVXX1111 . Bits D3-D0  indicate "Set Mode".

Last 4 bits set to 1111 Signifies This Control Word is to set mode.

Bits D5 and D4 are ignored.

Bits D7 and D6 set to 01 sets PIO to mode 1 input

Bits D7 and D6 set to 00 sets PIO to mode 0 output


%VVVVVVV0 . Bit 0 set to 0 sets the low byte interrupt vector set by remaining bits.

D0 is used in this case as a flag bit which when low,

causes V7 through V1 to be loaded into the vector register.

0 in D0 Signifies This Control Word is an Interrupt Vector.

%00001100 interrupt vector low byte set to Hex 12.

HEX 12 is the low byte of a scratch pad address given by the Einstein's Machine Operating System at bootup.

The high byte needs to be in the Z80's I register. This is fixed to HEX FB by the Einstein at bootup.


%VVVVV111

Bits 0, 1 and 2 set to 111 This Signifies Control Word  is to set interrupt.

%10000111 Bit 7 set to 1 enables interrupts.


A pdf user manual for the Z80 PIO can be downloaded here.

http://www.z80.info/zip/z80piomn.pdf



More About The Einstein’s Z80 PIO

The Z80 PIO has two ports for 8Bit input and output: Port A and B. On the Einstein port A is configured to be compatible as a centronic’s printer port at power up. Electronically this is set as mode 0 output but has a hardware adaptor of a monostable which sets ARDY high  as a 1us pulse. With the User Port the BRDY is held high until a high is received by PIO’s  BSTB pin.

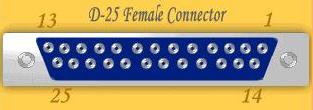

Physically the Einstein’s printer port pin out in the manual labels a STROBE pin which is connected to the PIO’s ARDY and an ACKNOWLEDGE  pin which connects to the PIO’s ASTB. The printer port’s BUSY, PE and ERROR connect to the Einstein’s command/status register.


If the Einstein’s printer port is used instead of the user port any of the Einstein’s software applications print commands will transfer output data but Additional Programming would be needed for input.





U_OUT_EN.BBC for the Einstein

Download a pdf booklet of this web page

  10 REM U_OUT_EN.BBC EINSTEIN BBCBASIC PROGRAM

  20 REM TEST PROGRAM TO OUTPUT DATA BYTES

  30 REM TO THE USER PORT USING INTERRUPT HANDSHAKING

  40 REM OUTPUT CAN BE RECEIVED BY A PC ECCP PRINTER PORT

  50 REM USING BYTE MODE SET FOR IMPORT.

  60 REM RECIEVED ASCII DATA BYTES CAN BE READ TO SCREEN BY

  70 REM XP_IN_WIN.BBC PROGRAM RUN BY BBCBASIC FOR WINDOWS.

  80 REM

  90 REM *| WIRING EINSTEIN USER PORT/PC PRINTER PORT

 100 REM *|PC data lines D0 to D7 to Einstein D0 to D7

 110 REM *|PC strobe to Einstein STB

 120 REM *|PC acknowledge to Eistein RDY.

 130 REM *| PLUS ONE OR MORE GROUND

 140 REM *

 150 ON ERROR GOTO 1030

 160 HIMEM=HIMEM-80       :REM CREATES SAFE MEMORY AREA ABOVE BBCBASIC

 180 DIM code 80

 190 code=HIMEM+1

 200 REM configpio =start_code+&11 :REM THESE VALUES ARE TO GIVE

 210 REM outbyte =start_code+&3F   :REM REFERENCE FOR OTHER ASSEMBLERS

 220 REM PAOUT =start_code+&28     :REM IF ASSEMBLE CODE IS ALTERED

 230 REM CODE SIZE 64              :REM NEW VALUES WILL BE PRINTED OUT

 240 REM BY BASIC LINES 800 to 850

 250 PRINT "Assembling code at... &";~code

 260 PRINT"PRESS ANY KEY TO CONTINUE ":H=GET

 270 FOR pass=0 TO 1

 280   P%=code

 290   [OPT pass*3

 300   .start_code

 310   .flag DEFB 0       ;LATCH BYTE FOR INTERRUPT

 320     .intrrpt           ;        INTERUPT ROUTINE

 330     PUSH HL            ;

 340     PUSH DE            ;ENDIF REGISTERS

 350     PUSH BC            ;

 360     PUSH AF            ;

 370     LD HL,flag         ;GET ADDRESS OF flag BYTE INTO HL

 380     RES 0,(HL)         ;SET BIT 0 OF flag TO 0

 390     POP AF             ;          Note RST ops SHOULD NOT BE

 400     POP BC             ;                USED IN AN INTERRUPT ROUTINE

 410     POP DE             ;RESTORE REGISTERS

 420     POP HL             ;

 430     EI                 ;ENABLE INTERRUPTS

 440     RETI               ;RETURN FROM INTERRUPT

 450     .configpio

 460     LD  A,&12    ;sets low byte of interrupt address

 470     OUT (&33),A  ;writes to USER port reg &12 %00010010

 480     LD  A,&0F    ;sets PIO to mode 0 output

 490     OUT (&33),A  ;writes to USER port reg &0F %00001111

 500     LD  A,&87    ;enables interrupts

 510     OUT (&33),A  ;writes to USER port reg &87 %10000111

 520     PUSH HL

 530     LD HL,intrrpt  ;LOAD HL INTERRUPT START ADDRESS

 540         LD (&FB12),HL  ;LOAD USER PORT SCRATCH PAD INTERRUPT ADDRESS

 550             POP HL

 560             IM 2           ; ENABLE INTERRUPT 2 MODE

 570             RET

 580             .PAOUT   ;CODE TO OUTPUT BYTE ENDWHILE IN MEMORY LOCATION outbyte TO

 590           PUSH HL

 600           PUSH DE            ;ENDIF REGISTERS

 610           PUSH BC

 620           PUSH AF

 630           LD HL,flag    ; FLAG BYTE ADDRESS FOR USER PORT INTERRUPT.

 640             .POLL

 650             BIT 0,(HL)

 660             JR NZ,POLL

 670             LD A,(outbyte)

 680             OUT (&32),A        ; outport Parallel port data reg.

 690             SET 0,(HL)

 700             POP AF

 710             POP BC

 720             POP DE             ;RESTORE REGISTERS

 730             POP HL

 740             RET

 750             .outbyte DEFB 0       ;USER LOADS BYTE FOR OUTPUT

 760                   .end  RET

 770                   ]

 780                 NEXT pass

 790                 CALL configpio

 800                 PRINT "CODE BEGINS AT ADDRESS &";~start_code

 810                 PRINT "END CODE ADDRESS &";~end

 820                 PRINT "configpio =start_code+&";~configpio-start_code

 830                 PRINT "outbyte =start_code+&";~outbyte-start_code

 840                 PRINT "PAOUT =start_code+&";~PAOUT-start_code

 850                 PRINT "CODE SIZE "; end-start_code

 860                 PRINT "PRESS ANY KEY TO START"

 870                 H=GET

 880                 REM THE EXAMPLE CODE CODE BELOW CAN BE CHANGED

 890                 REM THE INSTALLED MACHINE CODE CAN BE USED TO

 900                 REM SEND ANY BYTE OUT TO THE USER PORT

 910                 REM BY LOADING outbyte ADDRESS WITH THE

 920                 REM BYTE TO BE SENT AND CALLING PAOUT

 930                 REPEAT

 940                   D$=INKEY$(0)

 950                   FOR I=32 TO 126

 960                     ?outbyte=I

 970                     CALL PAOUT

 980                     PRINT" ";I;

 990                   NEXT I

1000                 UNTIL D$="A"

1010                 PRINT"END END END END "

1020                 STOP

1030                 REM

1040                 REPORT:PRINT "AT LINE ";ERL:STOP

  10 *|          XP_IN.BBC

  20 *|PC WINDOWS PROGRAM TO RUN IN BBCBASIC FOR WINDOWS

  30 *|Windows BBC4W program XP_IN.BBC  works with

  40 *|U_OUT_EN.BBC running in the Einstein

  50 *|

  60 *|It works in conjunction with the Einstein

  70 *|with linked PC ECCP printer port with the user

  80 *|port on the Einstein. It will input data bytes

  90 *|from the program U_OUT_EN.BBC running on the Einstein.

 100 *|

 110 *|         WIRING EINSTEIN USER PORT

 120 *|PC data lines D0 to D7 to Einstein D0 to D7

 130 *|PC strobe to Einstein STB

 140 *|PC acknowledge to Eistein RDY.

 150 *|Plus one or more ground lines.

 160 *|

 170 *|

 180 *|NEXT LINES CHECK TO SEE IF WINIO FILES ARE IN THE SAME DIRECTORY

 190 SYS "GetFileAttributesA", "winio.vxd" TO ret%

 200 IF ret%=-1 PRINT "ERROR winio.vxd not in directory "'@dir$:STOP ELSE PRINT"winio.vxd ok"

 210 SYS "GetFileAttributesA", "winiov1.sys" TO ret%

 220 IF ret%=-1 PRINT "ERROR winio1.sys not in directory "'@dir$:STOP ELSE PRINT"winiov1.sys ok"

 230 SYS "GetFileAttributesA", "winiov1.dll" TO ret%

 240 IF ret%=-1 PRINT "ERROR winio1.dll not in directory "'@dir$:STOP  ELSE PRINT"winiov1.dll ok"

 250 *|NEXT TWO LINES TO SHUT DOWN WINIO ON PROGRAM ERRORS AND AT CLOSE

 260 *|IF WINIO IS NOT CLOSED IT WILL NOT ALLWAYS INSTALL AGAIN WITHOUT A REBOOT

 270 ON CLOSE  SYS ShutdownWinIo% :PRINT:REPORT:STOP

 280 ON ERROR  SYS ShutdownWinIo% :PRINT:REPORT:STOP

 290 datap%=&378:              *|PRINTER LPT1 PORTS

 300 status%=&378+1:           *|

 310 controll%=&378+2:         *|

 320 eccport%=&378+&402:       *|

 330 DIM  dataport% 1:         *|MEMORY LOCATIONS TO STORE

 340 DIM eccp% 1   :           *|PRINTER PORT READ AND WRITE BYTES

 350 DIM statusp% 1 :          *|FOR WINIO SYSTEM CALLS

 360 DIM controllp% 1:         *|SEE HELP Input/output using WINIO

 370

  380 *|             ******************************

 390 *|         **************************************

 400 *|     ******** LOADS THIRD PARTY WINIO LIBRARY *******

 410 *|     FILES  WINIO.DLL, WINIO.SYS and WINIO.VXD must be in the

 420 *|   same directory (folder) as the executable program using them.

 430 *|Note to install WINIO IN 2000 and XP administrative privileges ARE NEEDED

 440 *|****************************************************************************

 450 SYS "LoadLibrary", "WINIO.DLL" TO winio%

 460 IF winio% = 0 ERROR 0, "Could not load WINIO"

 470 SYS "GetProcAddress", winio%, "InitializeWinIo" TO InitializeWinIo%

 480 SYS "GetProcAddress", winio%, "ShutdownWinIo" TO ShutdownWinIo%

 490 SYS "GetProcAddress", winio%, "GetPortVal" TO GetPortVal%

 500 SYS "GetProcAddress", winio%, "SetPortVal" TO SetPortVal%

 510 SYS InitializeWinIo% TO ok%

 520 IF (ok% AND 1) = 0 ERROR 0, "Could not initialise WINIO"

 530 *|       **********************************************************

 540 *|

 550 *|*****************************************************************************

 560 PROC_set_byte_mode:      *|SETS UP ECCP PARALLEL FOR BYTE MODE

 570 PRINT

 580 PROC_controll_input:     *|SETS PRINTER PORT FOR INPUT

 590 PRINT"RUN U_OUT_EN.BBC ON THE EINSTEIN THEN "

 600 PRINT"PRESS ANY KEY TO RECEIVE INPUT FROM PRINTER PORT"

 610 H=GET

 620 PRINT''"TO CANCEL PRESS ESCAPE ON THE EINSTEIN KEY BOARD FIST  "'\

 630 \"THEN ESCAPE ON THE PC KEYBOARD. "

 640 *|                        **********************

 650 *|                         ********************

 660 *|               ****************************************

 670 *|        *****************************************************************

 680 *|********** MAIN PROGRAM FOR EXPORTING Bytes TO THE PRINTER PORT ******************

 690 *|

 700 *|

 710 pollbyte=0: *| var to latch an acknowledge pulse

 720 REPEAT

 730   key$=INKEY$(0)

 740   PROC_get

 750   data%=?^dataport%

 760   IF data%=13 PRINT CHR$(data%)

 770   IF data% =>32 AND data%=<126 PRINT CHR$(data%);

 780 UNTIL key$="A" OR key$="a"

 790 SYS ShutdownWinIo%

 800 STOP

 810 *| ************************ END OF TO RECEIVE DATA  ********************

 820 *|                   **********************

 830 *|             *********DEF PROC_get************

 840 *|WHEN THE LPT1 PORT HAS BEEN INITIATED AND WINIO INSTALLED

 850 *|PROC_get IS THE ONLY PROCEDURE NEEDED FOR THE USER TO IMPORT A BYTE

 860 *|FROM THE pc PRINTER PORT data%=?^dataport% PUTS IMPORTED BYTE IN data% VAR

 870 DEF PROC_get

 880 REPEAT:PROC_poll_ack:UNTIL pollbyte<>0

 890 PROC_strobe_low

 900 SYS GetPortVal%, datap%, ^dataport%, 1

 910 pollbyte=0

 920 PROC_strobe_high

 930 ENDPROC

 940 *| *******************************************************************************

 950

  960 *|   ************* PROC_set_byte_mode DOES WHAT IS SAYS ***************

 970 DEF  PROC_set_byte_mode

 980 SYS GetPortVal%, eccport%, ^eccp%, 1

 990 byte=?^eccp%

1000 byte=byte AND %00111111

1010 byte=byte OR  %00100000

1020 SYS SetPortVal%, eccport%, byte, 1

1030 SYS GetPortVal%, eccport%, ^eccp%, 1

1040 byte=?^eccp%

1050 D$=FN_BIN(byte)

1060 PRINT '"ENHANCED PARALLEL PORT"

1070 PRINT"      BIT PATTEN                             ";D$

1080 PRINT" Needed to set ECP port to byte mode.        %001XXXXX"

1090 IF (byte AND %11100000)=%00100000 PRINT " BYTE MODE SET " ELSE PRINT"BYTE MODE NOT SET "

1100 ENDPROC

1110

 1120 *|   ************  PROC_controll_input  ********************

1130 *|   ************  SETS LPT1 PRINTER PORT FOR INPUT

1140 *|   ************  DISABLES INTERRUPTS

1150 *|   ************  SETS STROBE LINE LOW (strobe hardware inverted)

1160 DEF PROC_controll_input

1170 SYS GetPortVal%, controll%, ^controllp%, 1

1180 ctrl=ctrl OR %00100001        :*| ; set bits 0 to 1 inverted 1 sets STROBE line to low.

1190 ctrl=ctrl AND %11101111       :*| ; bit 5 set to 1 for input

1200 :                              *| ; bit 4 set to 0 no interrupts set

1210 SYS SetPortVal%, controll%, ctrl, 1

1220 SYS GetPortVal%, controll%, ^controllp%, 1

1230 ctrl=?^controllp%

1240 D$=FN_BIN(ctrl)

1250 PRINT "CONTROLL PORT BIT PATTEN                     ";D$

1260 PRINT " Needed bit 5 set to 1 for data input      %XX1XXXXX"

1270 PRINT " To set bit 0 to 1. Sets STROBE line to low. %XXXXXXX1"

1280 PRINT " STROBE line hardware inverted"

1290 PRINT " Bit 4 set to 0 for no interrupts set.       %XXX0XXXX"

1300 IF (ctrl AND %00100000)=32 PRINT "          SET UP FOR IMPORT INSTALLED " ELSE PRINT "ERROR"

1310 PRINT

1320 ENDPROC

1330

 1340

 1350 DEF PROC_poll_ack

1360 SYS GetPortVal%, status%, ^statusp%, 1

1370 stat=?^statusp%

1380 ack%=stat AND %01000000

1390 IF ack%<>0 pollbyte=1

1400 ENDPROC

1410

 1420

 1430 DEF PROC_strobe_high

1440 SYS GetPortVal%, controll%, ^controllp%, 1

1450 ctrl=?^controllp%

1460 ctrl=ctrl AND %11111110        :*| ; set bit 0 to 0. Inverted-0 sets STROBE line to high.

1470 SYS SetPortVal%, controll%, ctrl, 1

1480 ENDPROC

1490

 1500

 1510 DEF PROC_strobe_low

1520 SYS GetPortVal%, controll%, ^controllp%, 1

1530 ctrl=?^controllp%

1540 ctrl=ctrl OR %00000001        :*| ; set bit 0 to 1. Inverted-1 sets STROBE line to low.

1550 SYS SetPortVal%, controll%, ctrl, 1

1560 ENDPROC

1570

 1580

 1590 *| *************** FUNCTION PRINTS OUT BINARY STRING OF VAR *************

1600 *| E,G VAR NUMERIC VALUE 7 WOULD RETURN STRING VAR %00000111

1610 DEF FN_BIN(A%):LOCAL A$

1620 REPEAT A$=STR$(A% AND 1)+A$:A%=A% >>> 1:UNTIL LEN A$=8:A$="%"+A$

1630 =A$

1640 *| **********************************************************************

1650

 1660 *| FINISH



  10 REM U_IN_EN.BBC EINSTEIN BBCBASIC PROGRAM

  20 REM TEST PROGRAM TO IMPORT DATA BYTES

  30 REM FROM THE USER PORT USING INTERRUPT HANDSHAKING

  40 REM IMPORT CAN BE RECEIVED FROM A PC ECCP PRINTER PORT

  50 REM RUNNING OUT_XP_large IN BBCBASIC FOR WINDOWS

  60 REM ECCP SET TO BYTE MODE AND FOR IMPORT.

  70 REM

  80 REM *| WIRING EINSTEIN USER PORT/PC PRINTER PORT

  90 REM *|PC data lines D0 to D7 to Einstein D0 to D7

 100 REM *|PC strobe to Einstein STB

 110 REM *|PC acknowledge to Eistein RDY.

 120 REM *| PLUS ONE OR MORE GROUND

 130 REM *

 140 ON ERROR GOTO 1110

 150 HIMEM=HIMEM-80

 170 usrcon=&33

 180 usrdata=&32

 190 DIM code 80

 200 code=HIMEM+1

 210 PRINT "Assembling...code at &";~HIMEM+1

 220 PRINT"PRESS ANY KEY TO CONTINUE ":H=GET

 230 FOR pass=0 TO 1

 240   P%=code

 250   [OPT pass*3

 260   .start_code

 270   .flag DEFB 0

 280   .intrrpt    ;interupt routine

 290   PUSH HL

 300   PUSH DE     ;save registers

 310   PUSH BC

 320   PUSH AF

 330   LD HL,flag

 340   RES 1,(HL)  ;at an interrupt byte at address flag has bit 1 set to zero.

 350   POP AF

 360   POP BC      ;retrieve registers

 370   POP DE

 380   POP HL

 390   EI          ;enables interuppts

 400   RETI        ;returns from interrupt routine.

 420   .configpio      ;ROUTINE TO CONFIGER USER PORT FOR MODE 1 and INTERRUPS ENABLED

 430     LD  A,&12       ;sets low byte of interrupt address

 440     OUT (usrcon),A  ;writes to user port CONTROL reg &12 %00001100

 450     ;sets low byte of interupt vector address

 460     ;high byte of interupt vector address in Z80 I reg

 470     ;set by Einstein at boot up to &FB.

 480     LD  A,&4F       ;sets PIO to mode 1

 490     OUT (usrcon),A  ;writes to Einstein user port reg &4F %01001111

 500     LD  A,&87       ;enables interrupts

 510     OUT (usrcon),A  ;writes to parallel user port control reg &87 %10000111

 520     PUSH HL

 530     LD HL,intrrpt   ; LOAD reg HL address of interupt routine.

 540     LD (&FB12),HL   ; LOAD interupt address into interupt vector at &FB12.

 550     POP HL

 560     IM 2            ; ENABLE INTERRUPT 2 MODE

 570     RET

 580     .getbyte        ;ROUTINE TO IMPORT A SINGLE BYTE FROM THE USER PORT

 590     PUSH HL

 600     PUSH DE         ;save registers on the stack

 610     PUSH BC

 620     PUSH AF

 630     LD HL,flag

 640     .POLL           ;LOOP to poll bit 1 of flag set by interrupt routine.

 650     LD HL,flag

 660     BIT 1,(HL)

 670     JR NZ,POLL      ;IF flag bit 1 not zero loop back.

 680     IN A,(usrdata)  ;IF flag bit 1 zero get byte from user port into "A" register.

 690     LD (imput_byte),A    ;Put byte value of imported byte now in "A" register

 700     ;into memory location "imput_byte"

 710     SET 1,(HL)      ;resets bit 1 of byte at memory location "flag" to 1.

 720     POP AF

 730     POP BC          ;retrieve registers from stack.

 740     POP DE

 750     POP HL

 760     RET

 770     .imput_byte DEFB 0

 780     .end

 790     ]

 800   NEXT pass

 810   CALL configpio

 820   PRINT "CODE BEGINS AT ADDRESS &";~start_code

 830   PRINT "END CODE ADDRESS &";~end

 840   PRINT "flag=start_code+&";~flag-start_code

 850   PRINT "configpio =start_code+&";~configpio-start_code

 860   PRINT "getbyte =start_code+&";~getbyte-start_code

 870   PRINT "imput_byte=start_code+&";~imput_byte-start_code

 880   PRINT "CODE SIZE "; end-start_code

 890   PRINT "PRESS ANY KEY TO START"

 900   REM USER PROGRAMING CAN BE ADDED HERE

 910   REM RECEIVED IMPORT BYTES FROM USER PORT

 920   REM ARE FOUND BY CALLING getbyte THEN

 930   REM PEEKING THE ADDRESS imput_byte

 940   REM "n=?imput_byte" IN BBCBASIC

 950   REM

 960   REM IN THE EXAMPLE PROGRAM BELOW

 970   REM BYTE VALUES 32 to 126 TO BE PRINTED

 980   REM TO SCREEN AS ASCII CHARACTERS IN THE PC

 990   REM WITH BBC4W RUNNING P_IN_WIN.BBC

1000   REM

1010   PRINT "PRESS ANY KEY TO RUN EXAMPLE PROGRAM"

1020   H=GET

1030   REPEAT

1040     D$=INKEY$(0)

1050     n=?imput_byte

1060     CALL getbyte

1070     IF n=13 PRINT

1080     IF n=>32 AND n=<126 PRINT CHR$(n);

1090   UNTIL D$="A" OR n=27

1100   STOP




  10 *|OUT_XP.BBC is just small enough to run in

  20 *|the trial BBC4W demo version.

  30 *|If additional basic lines are added delete

  40 *|comments before running in demo version

  50 *|a NO ROOM error could mean rebooting

  60 *|before WINIO will install again.

  70 *|

  80 *|          XP_OUT.BBC

  90 *|PC WINDOWS PROGRAM TO RUN IN BBCBASIC FOR WINDOWS

 100 *|Transfers bytes from the PC printer port to

 110 *|Einstein’s USER PORT.

 120 *|Requires WINIO support files WINIO.VXD, WINIOV1.DLL

 130 *|and WINIOV1SYS in the same folder as this program.

 140 *|

 150 *|Windows BBC4W program OUT_XP.BBC works with

 160 *|U_IN_EN.BBC running in the Einstein to send bytes

 170 *|from the PC printer port to the Einstein's user

 180 *|port.

 190 *|

 200 *|         WIRING EINSTEIN USER PORT

 210 *|PC data lines D0 to D7 to Einstein D0 to D7

 220 *|PC strobe to Einstein STB

 230 *|PC acknowledge to Einstein RDY.

 240 *|Plus one or more ground lines.

 250 *|

 260 *|

 270 *|This BBC4W Prog will work for win95/98 AND XP

 280 *|The program is intended to poll acknowlede for

 290 *|a pulse as output by RDY pin 5 of the

 300 *|Einstein's Z80 PIO user port.

 310 *|

 320 *|

 330 *|      WHEN Linked To The Einstein User Port

 340 *|All handshaking lines work as expected and data

 350 *|can be received by U_IN_EN.BBC when run on the Einstein.

 360

  370 datap%=&378:              *|PRINTER LPT1 PORTS

 380 status%=&378+1:           *|

 390 controll%=&378+2:         *|

 400 eccport%=&378+&402:       *|

 410 DIM  dataport% 1:         *|MEMORY LOCATIONS TO STORE

 420 DIM eccp% 1   :           *|PRINTER PORT READ AND WRITE BYTES

 430 DIM statusp% 1 :          *|FOR WINIO SYSTEM CALLS

 440 DIM controllp% 1:         *|SEE HELP INDEX "Input/output using WINIO"

 450 *|

 460 *|NEXT LINES CHECK TO SEE IF WINIO FILES ARE IN THE SAME DIRECTORY

 470 SYS "GetFileAttributesA", "winio.vxd" TO ret%

 480 IF ret%=-1 PRINT "ERROR winio.vxd not in directory "'@dir$:STOP ELSE PRINT"winio.vxd ok"

 490 SYS "GetFileAttributesA", "winiov1.sys" TO ret%

 500 IF ret%=-1 PRINT "ERROR winio1.sys not in directory "'@dir$:STOP ELSE PRINT"winiov1.sys ok"

 510 SYS "GetFileAttributesA", "winiov1.dll" TO ret%

 520 IF ret%=-1 PRINT "ERROR winio1.dll not in directory "'@dir$:STOP  ELSE PRINT"winiov1.dll ok"

 530 *|NEXT TWO LINES TO SHUT DOWN WINIO ON PROGRAM ERRORS AND AT CLOSE

 540 *|IF WINIO IS NOT CLOSED IT WILL NOT ALLWAYS INSTALL AGAIN WITHOUT A REBOOT

 550 ON CLOSE  SYS ShutdownWinIo% :STOP

 560 ON ERROR  SYS ShutdownWinIo% :STOP

 570 *|             ******************************

 580 *|         **************************************

 590 *|     ******** LOADS THIRD PARTY WINIO LIBRARY *******

 600 *|     FILES  WINIO.DLL, WINIO.SYS and WINIO.VXD must be in the

 610 *|   same directory (folder) as the executable program using them.

 620 *|Note to install WINIO IN 2000 and XP administrative privileges ARE NEEDED

 630 *|****************************************************************************

 640 SYS "LoadLibrary", "WINIO.DLL" TO winio%

 650 IF winio% = 0 ERROR 0, "Could not load WINIO"

 660 SYS "GetProcAddress", winio%, "InitializeWinIo" TO InitializeWinIo%

 670 SYS "GetProcAddress", winio%, "ShutdownWinIo" TO ShutdownWinIo%

 680 SYS "GetProcAddress", winio%, "GetPortVal" TO GetPortVal%

 690 SYS "GetProcAddress", winio%, "SetPortVal" TO SetPortVal%

 700 SYS InitializeWinIo% TO ok%

 710 IF (ok% AND 1) = 0 ERROR 0, "Could not initialise WINIO"

 720 *|*****************************************************************************

 730 *|       **********************************************************

 740 *|

 750 PROC_set_byte_mode:      *|SETS UP ECCP PARALLEL FOR BYTE MODE

 760 PRINT

 770 PROC_controll_output:    *|SETS PRINTER PORT FOR OUT PUT

 780 *| *********************************************

 790 *|                         ********************

 800 *|               ****************************************

 810 *|        *****************************************************************

 820 *|********** MAIN PROGRAM FOR EXPORTING Bytes TO THE PRINTER PORT ******************

 830 *|

 840 *|

 850 pollbyte=0: REM var to latch an acknowledge pulse

 860 PRINT "      MAIN PROGRAM FOR EXPORTING BYTES TO THE PRINTER PORT "

 870 PRINT "PRESS ANY KEY TO CONTINUE MAIN PROGRAM "'

 880 H=GET

 890 PRINT "RUN U_IN_EN.BBC on the Einstein. "''"TO CANCEL PRESS ESCAPE ON THE EINSTEIN KEY BOARD FIST  "'\

 900 \" THEN ESCAPE ON THE PC KEYBOARD. "

 910 *|REPEAT and FOR NEXT loop create an example program.

 920 REPEAT

 930   FOR i=32 TO 126

 940     D$=INKEY$(0)

 950     *|The next four lines get a single byte from

 960     *|the printer port and set handshaking.

 970     PROC_strobe_low

 980     REPEAT:PROC_poll_ack:UNTIL pollbyte=1

 990     SYS SetPortVal%, datap%, i, 1

1000     pollbyte=0

1010     PROC_strobe_high

1020   NEXT i

1030 UNTIL D$="A"

1040 SYS ShutdownWinIo%

1050 STOP

1060 *| *******************************************************************************

1070

 1080 *|

1090 *|   ************* PROC_set_byte_mode DOES WHAT IS SAYS ***************

1100 DEF PROC_set_byte_mode

1110 SYS GetPortVal%, eccport%, ^eccp%, 1

1120 byte=?^eccp%

1130 byte=byte AND %00111111

1140 byte=byte OR  %00100000

1150 SYS SetPortVal%, eccport%, byte, 1

1160 SYS GetPortVal%, eccport%, ^eccp%, 1

1170 byte=?^eccp%

1180 D$=FN_BIN(byte)

1190 PRINT "ENHANCED PARALLEL PORT"

1200 PRINT"      BIT PATTEN                             ";D$

1210 PRINT" Needed to set ECP port to byte mode.        %001XXXXX"

1220 IF (byte AND %11100000)=%00100000 PRINT " BYTE MODE SET " ELSE PRINT"BYTE MODE NOT SET "

1230 ENDPROC

1240

 1250 *|   ************  PROC_controll_output  ********************

1260 *|   ************  SETS LPT1 PRINTER PORT FOR OUTPUT

1270 *|   ************  DISABLES INTERRUPTS

1280 *|   ************  SETS STROBE LINE LOW (strobe hardware inverted)

1290 DEF PROC_controll_output

1300 SYS GetPortVal%, controll%, ^controllp%, 1

1310 REM PROC_ctrl

1320 ctrl=ctrl OR %00000001        :*| ; set bits 0 to 1 inverted 1 sets STROBE line to low.

1330 ctrl=ctrl AND %11001111       :*| ; bit 5 set to 0 for output

1340 :                              *| ; bit 4 set to 0 no interrupts set

1350 SYS SetPortVal%, controll%, ctrl, 1

1360 SYS GetPortVal%, controll%, ^controllp%, 1

1370 ctrl=?^controllp%

1380 D$=FN_BIN(ctrl)

1390 PRINT "CONTROLL PORT BIT PATTEN                     ";D$

1400 PRINT " Needed bit 5 set to 0 for data outport      %XX0XXXXX"

1410 PRINT " Needed bit 4 set to 0 for NO interrupts     %XXX0XXXX"

1420 PRINT " To set bit 0 to 1. Sets STROBE line to low. %XXXXXXX1"

1430 PRINT " STROBE line hardware inverted"

1440 ENDPROC

1450

 1460 DEF PROC_poll_ack

1470 SYS GetPortVal%, status%, ^statusp%, 1

1480 stat=?^statusp%

1490 ack%=stat AND %01000000

1500 IF ack%<>0 pollbyte=1

1510 ENDPROC

1520

 1530

 1540 DEF PROC_strobe_high

1550 SYS GetPortVal%, controll%, ^controllp%, 1

1560 ctrl=?^controllp%

1570 ctrl=ctrl AND %11111110        :*| ; set bit 0 to 0. Inverted-0 sets STROBE line to high.

1580 SYS SetPortVal%, controll%, ctrl, 1

1590 ENDPROC

1600

 1610 DEF PROC_strobe_low

1620 SYS GetPortVal%, controll%, ^controllp%, 1

1630 ctrl=?^controllp%

1640 ctrl=ctrl OR %00000001        :*| ; set bit 0 to 1. Inverted-1 sets STROBE line to low.

1650 SYS SetPortVal%, controll%, ctrl, 1

1660 ENDPROC

1670

 1680

 1690 *| *************** FUNCTION PRINTS OUT BINARY STRING OF VAR *************

1700 *| E,G VAR NUMERIC VALUE 7 WOULD RETURN STRING VAR %00000111

1710 DEF FN_BIN(A%):LOCAL A$

1720 REPEAT A$=STR$(A% AND 1)+A$:A%=A% >>> 1:UNTIL LEN A$=8:A$="%"+A$

1730 =A$

1740 *| **********************************************************************

1750

 1760 *|FINISH



                                  WIRING LINK

USER PORT                                      PC PRINTER PORT
PIN                                                        PIN
  2                D0             to                    2        D0
  4                D1             to                    3        D1
  5                RDY          to                  10      ACK
  6                D2             to                    4        D2
  8                D3             to                    5        D3
10                D4             to                    6        D4
11               STB            to                    1        STB
12                D5             to                    7        D5
14                D6             to                    8        D6
16                D7             to                    9        D7
One or more pins                                 pins
3 7 9 or 13 GROUND     to               18-25   GROUND
USER PORT PIN OUT

1                  5V
2                  D0
3                  0V
4                  D1
    5                  RDY
6                  D2
7                  0V
8                  D3
9                  0V
10                D4
  11                STB
12                D5
13                0V
14                D6
15                5V
16                D7
PC PRINTER PORT PIN OUT
1           STB
2           D0
3           D1
4           D2
5           D3
6           D4
7           D5
8           D6
9           D7
10         ACK
11         BSY
12         PAPER
13         SEL
14         AF
15         ERROR
16         INI
17         DSL
18-25    GROUND
U_IN_EN.BBC for the Einstein
Einstein User Port
PC Printer Port
XP_OUT.BBC for the PC
XP_IN.BBC for the PC

END

Note. Line numbers are optional with BBC4W
Note. Line numbers are optional with BBC4W

Download Einstein Disk Image.

In a Zip archive

Download

In a Zip archive
